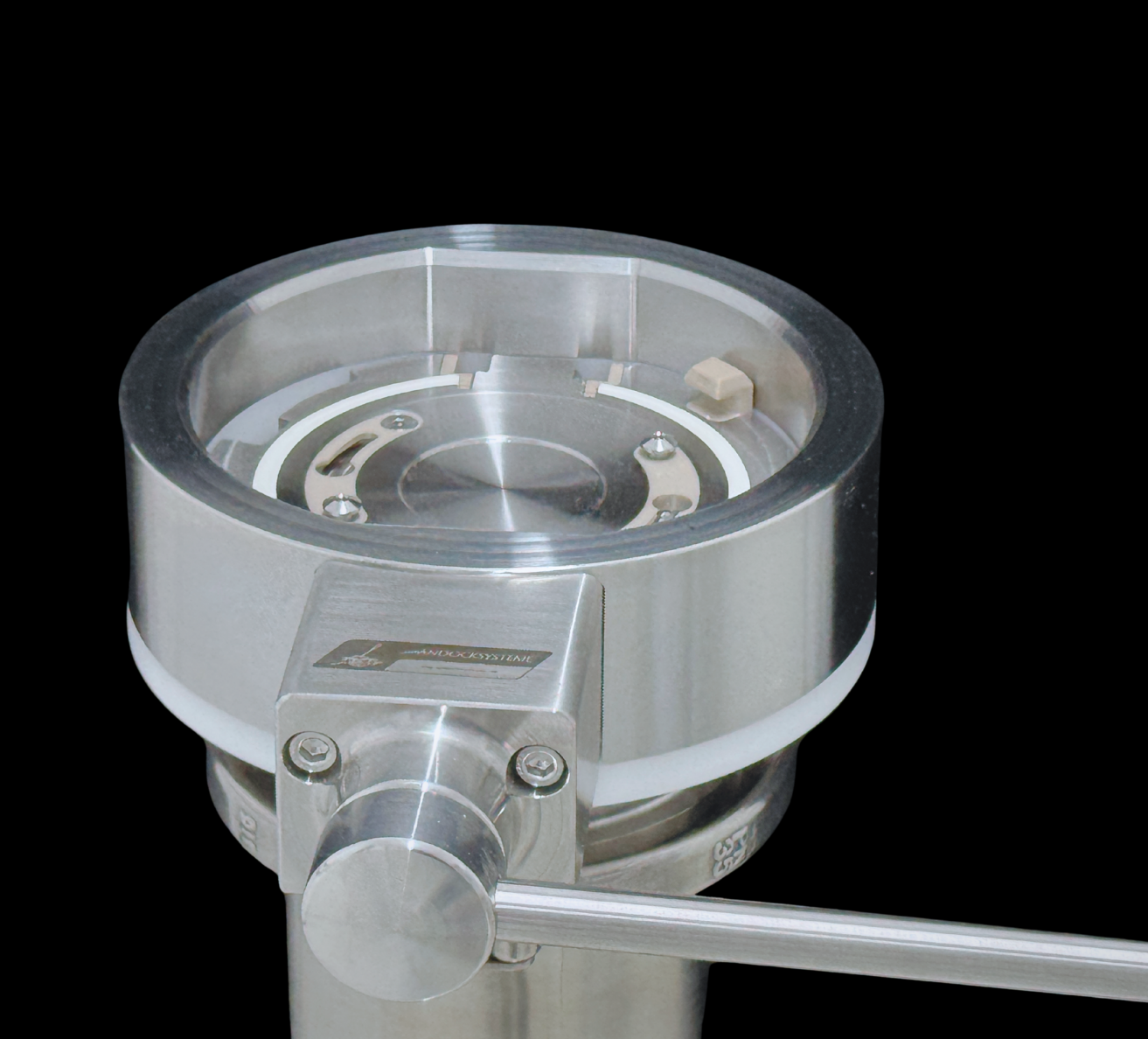

AVAX Split Butterfly Valve

Do you have an interface which you want to lock very (dust)tight very quickly? The AVAX technology, which was designed as a single-use containment solution, does that. Technically, AVAX is based on the established locking principle of the bayonet closure.

Whether upstream, downstream or main process: A comparison with classic methods shows that this split butterfly valve technology can make your process safer. because AVAX is made entirely of pharmaceutical-compliant plastics. Using these disposable containment interfaces, your processes are accelerated because AVAX includes the disposal of contaminated containers. This makes cleaning and validation obsolete and reduces your costs.

AVAX is designed as an identical matching passive-passive system in plastic and stainless steel and is suitable for applications under atmospheric pressure and normal temperatures. AVAX is always a clever choice if you're looking for something comparable to the classic split butterfly valve. Designed as a multi-use component, AVAX in stainless steel can also be connected to the single-use plastic version due to a hybrid passive-passive design. Are you looking for combined perfection in stainless steel and plastic?
We have AVAX – contained powder handling at its best!

What you should also know:
  • AVAX is intuitive and safe to handle
  • Meets emission limits of ≤ 1 μg/m³
  • Has an integrated Tri-Clamp seal (4" BS 4825-3)
  • Optimised for hybrid operation with AVAX stainless steel
  • Also available in a sterile version or with pre-sterilised components

Versions

Technical data

Product AVAX plastic AVAX stainless steel AVAX stainless steel AF
Single-use Yes No No
Filling and emptying Yes Yes Yes
Sampling option Yes Yes Yes
Max. temperature [°C] 80 80 80
Nominal size DN100 DN100 DN100
Operating pressure Atmospheric conditions Atmospheric conditions Atmospheric conditions
OEL level <1μg/m³ Yes Yes Yes
Operation Manual Manual Manual
Product AVAX plastic AVAX stainless steel AVAX stainless steel AF
Single-use Yes No No
Filling and emptying Yes Yes Yes
Sampling option Yes Yes Yes
Max. temperature [°C] 80 80 80
Nominal size DN100 DN100 DN100
Operating pressure Atmospheric conditions Atmospheric conditions Atmospheric conditions
OEL level <1μg/m³ Yes Yes Yes
Operation Manual Manual Manual

Animation
